TinyAuth
TinyAuth is a small forward-auth proxy: a single login page that Swag can insert in front of any app before letting a request through, checking whether a visitor is authenticated before forwarding them on.
It supports a simple local username/password login out of the box, which is what we'll set up here. It can also delegate login to an external OIDC provider like Pocket ID instead, so anyone visiting a protected app authenticates with a passkey via Pocket ID and then gets forwarded through: install Pocket ID afterwards and follow its guide to connect the two.
Installation
- /
- srv
- docker
- tinyauth
- compose.yaml
- .env
- data
- tinyauth
- docker
- srv
Create the data folder
sudo mkdir -p /srv/docker/tinyauth/data
Generate a password hash
sudo docker run -i -t --rm ghcr.io/tinyauthapp/tinyauth:v5 user create --interactive
.env file.Deploy the stack
Open Dockge, click compose, name the stack tinyauth, and add the following config:
---
services:
tinyauth:
image: ghcr.io/tinyauthapp/tinyauth:v5
container_name: tinyauth
restart: unless-stopped
env_file:
- .env
volumes:
- /srv/docker/tinyauth/data:/data
ports:
- 3000:3000
---
services:
tinyauth:
#...
labels:
- com.centurylinklabs.watchtower.enable=true
Set your environment variables
Fill in the .env file:
TINYAUTH_APPURL=https://tinyauth.mydomain.com
TINYAUTH_AUTH_USERS=
| Variable | Value | Example |
|---|---|---|
TINYAUTH_APPURL | The public URL you'll use to reach TinyAuth (see exposure below) | https://tinyauth.mydomain.com |
TINYAUTH_AUTH_USERS | The hash generated above | user:$$2a$$10$$UdLYoJ5lgPsC0RKq... |
Deploy the stack. The local interface is available at http://yourserverip:3000.
Done !
Enabling Two-Factor Authentication
TinyAuth can require a TOTP code from an authenticator app (Google Authenticator, Aegis...) alongside the local password, per user. This is a property of the user entry itself, not a toggle in the web UI.
Generate a TOTP secret
sudo docker run -i -t --rm ghcr.io/tinyauthapp/tinyauth:v5 totp generate --interactive
Enter the username:hash pair you generated during installation. TinyAuth prints a QR code to scan with your authenticator app, then outputs the updated login string as username:hash:secret.
docker run and docker exec need the -it flags here: the command is interactive and renders the QR code in the terminal, which needs a TTY (and a wide enough window) to display correctly.Update your environment variable
Replace that user's entry in TINYAUTH_AUTH_USERS with the new username:hash:secret string, then redeploy the stack.
sudo docker run -i -t --rm ghcr.io/tinyauthapp/tinyauth:v5 user verify --interactive
Done !
From now on, that user needs both their password and a valid code from their authenticator app to log in.
Exposing TinyAuth with Swag
TinyAuth needs its own subdomain: it's the page users land on before being forwarded to the app they actually want.
tinyauth.mydomain.com with a CNAME pointing to mydomain.com in your DNS zone. And of course, unless you use Cloudflare Zero Trust, your box's port 443 must be forwarded to your server's port 443 in NAT rules.Add TinyAuth's network to SWAG
Go to Dockge and edit SWAG's compose file by adding TinyAuth's network:
---
services:
swag:
container_name: # ...
# ...
networks: # Attach container to custom network
# ...
- tinyauth # Name of the declared network
networks: # Define the custom network
# ...
tinyauth: # Declared network name
name: tinyauth_default # Actual external network name
external: true # Marks it as externally defined
Redeploy the stack and wait for SWAG to be fully operational.
tinyauth_default. You can check the connection by visiting SWAG's dashboard at http://yourserverip:81.Create the subdomain.conf file
In the Swag folders, create the file tinyauth.subdomain.conf:
sudo nano /srv/docker/swag/config/nginx/proxy-confs/tinyauth.subdomain.conf
Paste the following configuration:
## Version 2023/12/19
server {
listen 443 ssl;
listen [::]:443 ssl;
server_name tinyauth.*;
include /config/nginx/ssl.conf;
client_max_body_size 0;
location / {
include /config/nginx/proxy.conf;
include /config/nginx/resolver.conf;
set $upstream_app tinyauth;
set $upstream_port 3000;
set $upstream_proto http;
proxy_pass $upstream_proto://$upstream_app:$upstream_port;
}
}
Press Ctrl+O, then Enter to save, and Ctrl+X to exit.
Visit your new subdomain

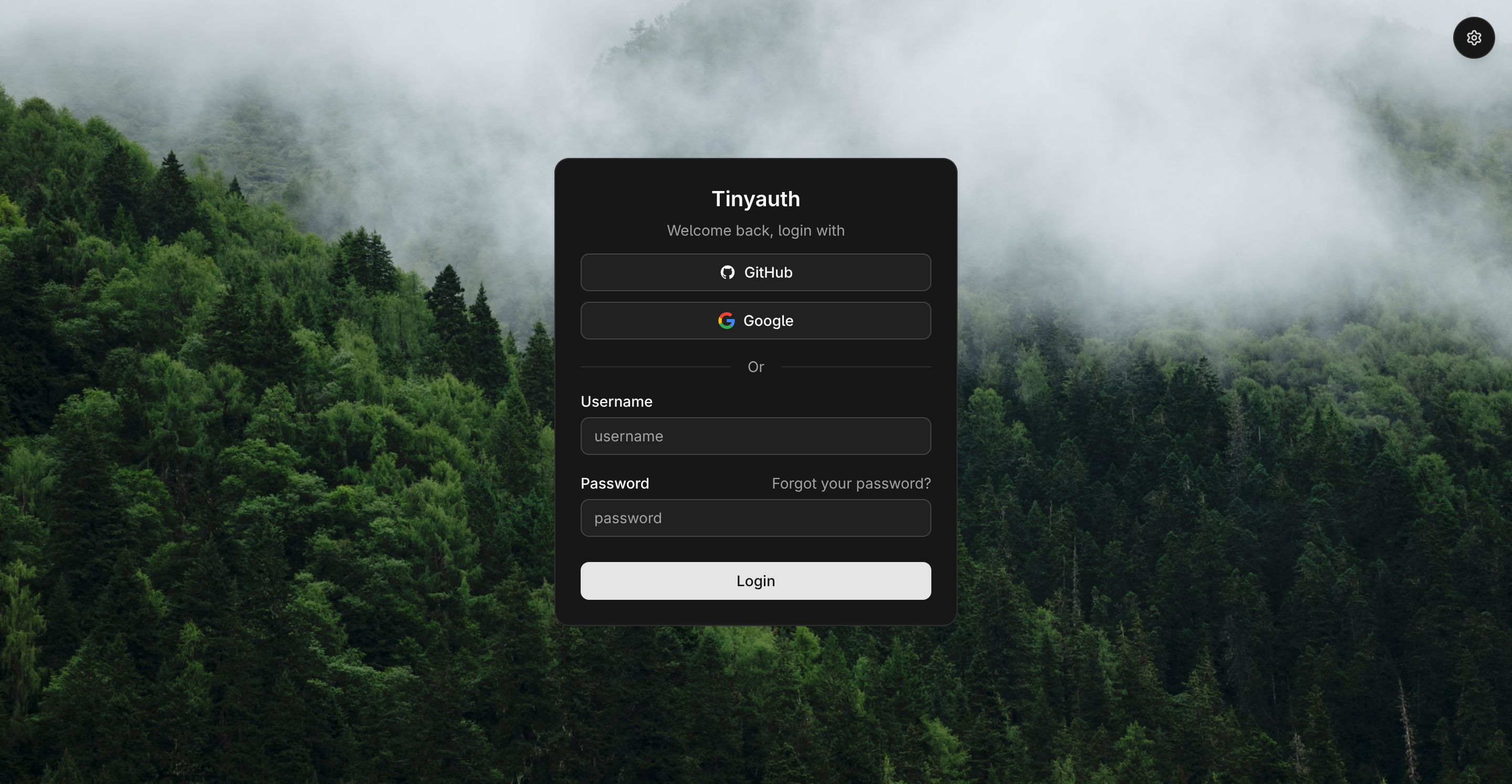

Wait a few minutes, then open https://tinyauth.mydomain.com in your browser and log in with the username/password you created above.
Done !
Protecting an app via reverse proxy
Swag doesn't ship a ready-made include file for TinyAuth, so we'll add the forward-auth check directly to the app's own *.subdomain.conf. We'll use Dockge as an example.
Open the app's subdomain.conf file
sudo nano /srv/docker/swag/config/nginx/proxy-confs/dockge.subdomain.conf
Add the forward-auth check
Add an internal /tinyauth location, and reference it from the app's location / block with auth_request:
server {
listen 443 ssl;
listen [::]:443 ssl;
server_name dockge.*;
include /config/nginx/ssl.conf;
client_max_body_size 0;
location /tinyauth {
internal;
proxy_pass http://tinyauth:3000/api/auth/nginx;
proxy_pass_request_body off;
proxy_set_header Content-Length "";
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-Host $http_host;
proxy_set_header X-Forwarded-Uri $request_uri;
}
location @tinyauth_login {
return 302 https://tinyauth.mydomain.com/login?redirect_uri=$scheme://$http_host$request_uri;
}
location / {
auth_request /tinyauth;
error_page 401 = @tinyauth_login;
include /config/nginx/proxy.conf;
include /config/nginx/resolver.conf;
set $upstream_app dockge;
set $upstream_port 5001;
set $upstream_proto http;
proxy_pass $upstream_proto://$upstream_app:$upstream_port;
}
}
location /tinyauth block runs inside SWAG's own container, so SWAG needs to be on TinyAuth's Docker network to reach it by name (tinyauth here). This should already be set up from exposing TinyAuth itself. If you run into an error, double-check SWAG's compose file still has that network attached.Press Ctrl+O, then Enter to save, and Ctrl+X to exit.
Done !
That's it! Visiting https://dockge.mydomain.com now redirects to TinyAuth first. Repeat this location /tinyauth / auth_request pattern in any other app's *.subdomain.conf to protect it the same way.
Leaving specific paths public
Sometimes you want most of an app locked behind TinyAuth, but a handful of paths left open, for example a public status page, or the API endpoints a mobile app relies on. Unlike Authentik, TinyAuth has no built-in "authenticated paths" setting for this: it's a plain nginx problem, and it's solved with nginx's own location matching.
A regex location block always takes priority over the plain location / block, no matter which one appears first in the file. So any path matched by a regex location you define runs its own proxy_pass, without ever reaching the auth_request /tinyauth; line in location /.
For example, to leave Uptime-Kuma's public status page and its assets open while protecting everything else:
server {
listen 443 ssl;
listen [::]:443 ssl;
server_name stats.*;
include /config/nginx/ssl.conf;
location ~ ^/(status|assets|icon\.svg|api|upload|metrics) {
include /config/nginx/proxy.conf;
include /config/nginx/resolver.conf;
set $upstream_app uptime-kuma;
set $upstream_port 3001;
set $upstream_proto http;
proxy_pass $upstream_proto://$upstream_app:$upstream_port;
}
location /tinyauth {
internal;
proxy_pass http://tinyauth:3000/api/auth/nginx;
proxy_pass_request_body off;
proxy_set_header Content-Length "";
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-Host $http_host;
proxy_set_header X-Forwarded-Uri $request_uri;
}
location @tinyauth_login {
return 302 https://tinyauth.mydomain.com/login?redirect_uri=$scheme://$http_host$request_uri;
}
location / {
auth_request /tinyauth;
error_page 401 = @tinyauth_login;
include /config/nginx/proxy.conf;
include /config/nginx/resolver.conf;
set $upstream_app uptime-kuma;
set $upstream_port 3001;
set $upstream_proto http;
proxy_pass $upstream_proto://$upstream_app:$upstream_port;
}
}
